Scheduled tasks - system modes?

I've just created my first scheduled task having successfully hooked up a zigbee dimmer switch through zigbee2mqtt. I see in the scheduled task edit screens that you can set the task to only run in certain system modes - home, away, vacation, night etc. Where can I see what mode the system is in and how does one set it? I couldn't see anything in the scheduler screens or the server command tester.

Andrew

House mode is nothing more than a server variable {{housemode}}. To set a house mode just do SetVariable|housemode~<<your mode>>
Scheduler specifically looks for house mode values of Home, Away, Vacation, Daytime, Nighttime.
You are free to define your own house modes but if you are using them with Scheduler then stick to the ones mentioned here.

Excellent. Thanks for that.

Andrew


Well I finally tried this and it doesn't seem to work...

I have a scheduled task that turns on the bedroom light at 7am on weekdays and it's only supposed to happen if the system mode is Home, Daytime or Nighttime.

I put the system into 'Vacation' mode (so I thought) by setting the server variable 'housemode' to 'Vacation'. But the scheduled task still fires at 7am.

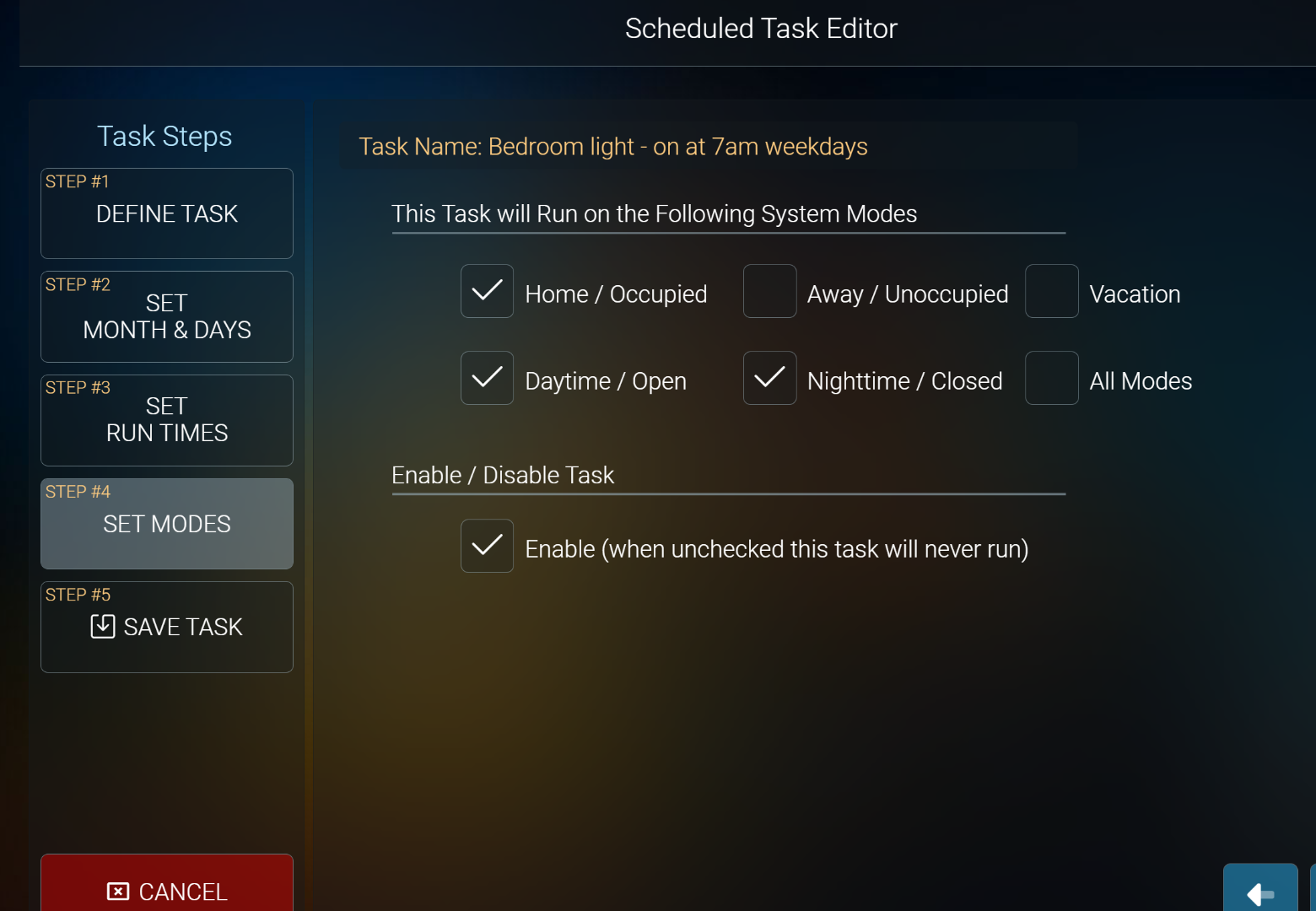

Scheduled task modes screen:


Macro that gets run:

Macro|
WebCmd|all~Toast|info~Server mode~The server mode is {{housemode}}~5000!
MqttPublish|zigbee2mqtt/Bedroom light/set~{"state": "ON"}

Log output:

26/12/2024 06:59:58.59 · DEBUG · AndroidTV.RX - FireTV <<  mScreenState=ON>>
26/12/2024 06:59:58.59 · DEBUG · AndroidTV.TX: FireTV - dumpsys activity activities | grep "mResumedActivity"
26/12/2024 06:59:58.59 · DEBUG · AndroidTV.RX - FireTV <<    mResumedActivity: ActivityRecord{b152fe7 u0 com.amazon.tv.launcher/.deeplink.acti
vity.DirectiveSearchResultsActivityDI t779}>>
26/12/2024 07:00:00.00 · DEBUG · Server.doCommand - bedroom-light-turn-on from Server
26/12/2024 07:00:00.00 · DEBUG · Server.doCommand - WebCmd|all~Toast|info~Server mode~The server mode is {{housemode}}~5000 from Server
26/12/2024 07:00:00.00 · DEBUG · Server.doCommand - WebCmd|all~Toast|info~Server mode~The server mode is Vacation~5000
26/12/2024 07:00:00.00 · DEBUG · Server.WebCmd - all~Toast|info~Server mode~The server mode is Vacation~5000
26/12/2024 07:00:00.00 · DEBUG · Server.doCommand - MqttPublish|zigbee2mqtt/Bedroom light/set~{"state": "ON"} from Server
26/12/2024 07:00:01.00 · DEBUG · Server.doCommand - AV|23~Test~@SYS:MODELNAME=? from
26/12/2024 07:00:01.00 · DEBUG · YamahaAVR.doCommand - Cmd=[23~Test~@SYS:MODELNAME=?] Client=[Internal]
26/12/2024 07:00:08.00 · DEBUG · AndroidTV.CheckAdb - Checking for ADB running



I think the variable you set is supposed to be 'server_housemode' not 'housemode'. And there appears to be a special command to set it too:

SetHouseMode|Vacation

We'll see tomorrow at 7am if this is it.

Yes that's got it this time:

27/12/2024 06:59:56.59 · DEBUG · AndroidTV.TX: FireTV - dumpsys activity activities | grep "mResumedActivity"
27/12/2024 06:59:56.59 · DEBUG · AndroidTV.RX - FireTV << mResumedActivity: ActivityRecord{b152fe7 u0 com.amazon.tv.launcher/.deeplink.acti
vity.DirectiveSearchResultsActivityDI t779}>>
27/12/2024 07:00:00.00 · DEBUG · Scheduler.Tasks - Skipping Task Bedroom light - on at 7am weekdays. Not in correct house mode.
27/12/2024 07:00:01.00 · DEBUG · Server.doCommand - AV|23~Test~@SYS:MODELNAME=? from
27/12/2024 07:00:01.00 · DEBUG · YamahaAVR.doCommand - Cmd=[23~Test~@SYS:MODELNAME=?] Client=[Internal]
27/12/2024 07:00:06.00 · DEBUG · AndroidTV.CheckAdb - Checking for ADB running


So if you want to use modes on scheduled tasks set the variable 'server_housemode'.
